BAKFlip G2 Tonneau Cover for RAM 1500

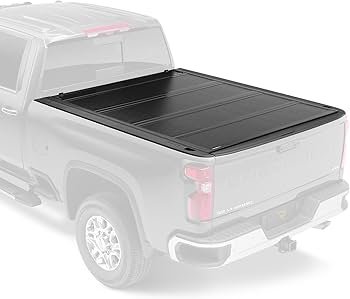

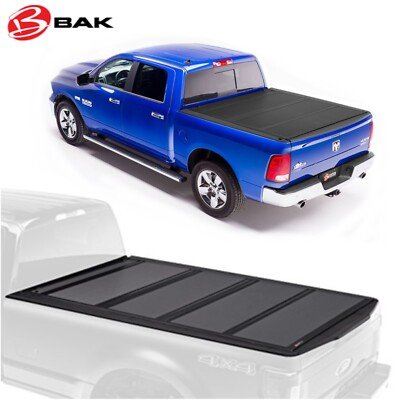

Our BAKFlip G2 for RAM 1500 trucks combines aircraft-grade aluminum panels with a low-profile design that sits flush with your bed rails. The four-panel folding system lets you access your full bed in seconds — fold it completely open and secure it against the cab, or position it anywhere in between for partial loads.
Every G2 we build uses the same heavy-duty aluminum construction trusted by commercial fleets and weekend warriors alike. The matte black finish resists scratches and UV damage, while our dual-action tailgate seal keeps water and dust out even during highway driving. Installation takes about an hour with basic hand tools — no drilling required on most RAM 1500 bed configurations.
- Four aluminum panels rated to support 300 lbs evenly distributed across the surface
- Folds completely open for full bed access or stops at multiple positions for versatile cargo hauling
- Low-profile design sits flush with bed rails — adds less than 3 inches to overall truck height
- Dual-action tailgate seal with EPDM rubber keeps weather out at highway speeds
- Clamp-on installation with no drilling required on 2009-2024 RAM 1500 models (5'7", 6'4", and 8' beds)
Aluminum Panel Construction & Weather Protection
We machine every G2 panel from .030-gauge aluminum alloy — the same material spec used in our entire G2 lineup across all truck makes. Each panel runs through a multi-stage powder coating process that bonds matte black finish to the aluminum surface, creating a barrier against road salt, UV exposure, and daily wear.
The dual-action tailgate seal is where most hard covers either succeed or leak. Our G2 uses a two-stage EPDM rubber gasket that compresses against both the tailgate and the bed rail simultaneously. Water that finds its way past the first seal hits the second barrier, then drains through integrated tubes that exit below the bed rail. RAM 1500 owners in the Pacific Northwest and Midwest snow belt report dry beds even during multi-day rain events and highway slush conditions.
Folding System & Bed Access Options
The four-panel folding design gives you three practical bed access modes. Fold all four panels against the cab for full bed length — this position locks with integrated straps and works for hauling sheet goods, ladders, or anything else that needs the entire 5’7″ to 8′ bed length your RAM offers.
Partial Folding for Mixed Loads
Fold just the rear panel or rear two panels when you need to protect the front half of your bed while loading longer items at the tailgate. Each panel locks independently, so you can position the cover exactly where your cargo demands. The panel-to-panel hinges use stainless steel pins and nylon bushings that handle tens of thousands of open-close cycles without binding or loosening.
Installation & Fit for RAM 1500 Models
Our clamp-on rail system installs without drilling on 2009-2024 RAM 1500 trucks across all three bed lengths. The side rails sit inside your stake pocket holes and secure with adjustable clamps that you torque to spec with a standard 10mm socket. Total installation time runs 45-60 minutes for most owners working alone in a driveway.
RAM 1500 Classic models (2019-2024) use the same bed dimensions as the previous-generation trucks, so the G2 fits those applications with identical hardware. If your RAM has a spray-in bedliner, measure the stake pocket opening before ordering — some thicker liners require our oversized clamp kit, which we include automatically when you select that option during checkout. The G2 sits flush with factory bed rails and clears RAM’s optional LED bed lighting and 115V power outlets without interference.
More Hard Folding Tonneau Covers for Your RAM
What people are saying
Common Questions About the G2 for RAM 1500
No, the G2 requires standard stake pocket holes along the bed rails to mount the side rail clamps. RAM 1500 models with RamBox storage have modified bed rail profiles that don't accommodate our clamp system.
If your RAM has RamBox, you'll need a cover specifically designed for that bed configuration — most hard folding covers including the G2 are built for standard RAM bed rails only.
Yes, the G2 installs over most spray-in bedliners including Line-X and Rhino Linings. The clamps adjust to accommodate the additional thickness of the liner material.
Measure your stake pocket opening after the liner is installed — if the opening is reduced by more than 1/4 inch, select the oversized clamp option when you order. We include detailed liner compatibility instructions with every G2 shipped to RAM owners.
The complete G2 for RAM 1500 weighs approximately 65-75 lbs depending on your bed length. The cover separates into two sections — each pair of panels connected by the center hinge — which makes removal manageable for one person.
Loosen the four rail clamps, lift the front panel section off first, then remove the rear section. Most owners can remove and reinstall the entire cover in under 20 minutes once they've done it a few times.
No, the G2 sits entirely within the bed rails and doesn't extend above the cab height when folded or closed. Your backup camera and rear parking sensors maintain full functionality with the cover installed.
The low-profile design also means the cover doesn't block your rearview mirror sight lines when you're looking through the cab's rear window.
Yes, you can drive with one or more panels folded up, but secure any open panels with the integrated hold-down straps before hitting the road. Unsecured panels can catch wind and damage the hinges at highway speeds.
Many RAM owners drive with the rear two panels folded when hauling longer items like kayaks or extension ladders that stick out past the tailgate. Just make sure you flag anything extending beyond the bed and secure the panels so they don't flap.
We back the G2 with a lifetime warranty covering the aluminum panels, hinges, side rails, and all mounting hardware against defects in materials and workmanship. The warranty covers your original purchase and transfers once if you sell your RAM.
The drain tubes and seals are covered for three years from purchase date. Normal wear items like hinge bushings and tailgate seal rubber aren't covered under the lifetime warranty but are available as replacement parts if needed after years of use.
We manufacture the G2 for all three RAM 1500 bed lengths: 5 feet 7 inches (crew cab short bed), 6 feet 4 inches (crew cab standard bed), and 8 feet (regular cab long bed). When you order, select your exact bed length and model year to ensure you receive the correct rail spacing and panel dimensions.
Measure your bed from inside the bulkhead to inside the tailgate if you're unsure which length you have — RAM's bed length specs are published measurements, and the G2 is engineered to those factory dimensions.
