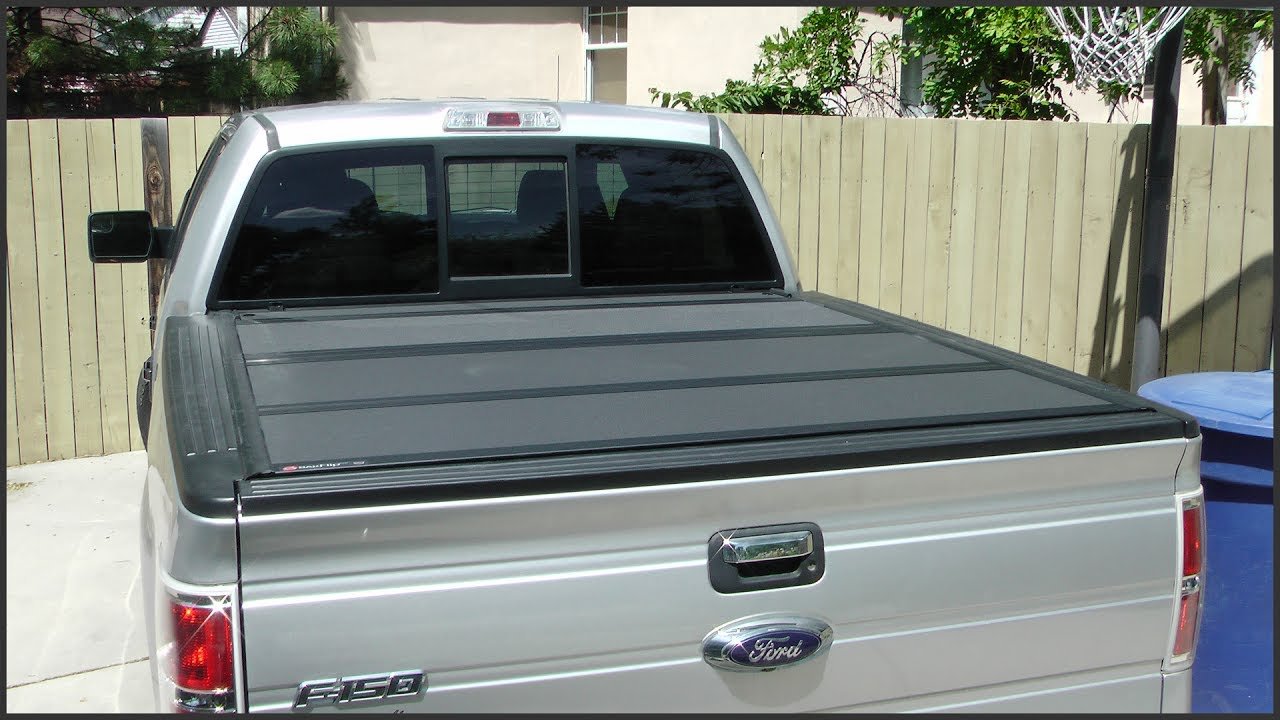

BAKFlip MX4 Installation Guide | Hard Folding Tonneau Cover Setup
The BAKFlip MX4 is our most popular hard folding tonneau cover, combining aluminum panel durability with a matte black finish that resists scratches and UV fading. We designed the MX4 for truck owners who need daily bed access without sacrificing security—each panel folds completely open in seconds, locks closed with our integrated slam-latch system, and handles highway speeds up to 100 mph without flapping or vibration.
Our clamp-on rail system installs in under an hour with zero drilling required, and the dual-action tailgate seal keeps rain and road spray out even during heavy downpours. The MX4 sits flush with your bed rails, preserving aerodynamics and fuel efficiency while maintaining full bed stake pocket access.
- Matte black aluminum panels resist scratches, dents, and UV damage
- Folds fully open for tall cargo or hauling oversize loads
- No-drill clamp installation takes 45-60 minutes with basic tools
- Integrated slam-latch system locks all four panels with one motion
- Dual-action tailgate seal prevents water intrusion at the cab and gate
Tools and Prep for BAKFlip Installation
Before you start your BAKFlip installation, gather a 10mm socket or wrench, a flathead screwdriver, and a spray bottle filled with soapy water. You’ll also want a second person on hand—while one person can technically install an MX4 alone, having a helper makes rail alignment and panel positioning significantly easier.
Clean your truck bed rails thoroughly with the soapy water, removing dirt, wax, and any spray-in bedliner overspray that might interfere with clamp grip. Check that your tailgate closes flush and your bed rails are free of aftermarket accessories like rail caps or tie-down systems that could block clamp placement. Most installations take 45-60 minutes once the bed is prepped, though first-timers should budget 90 minutes to double-check every alignment step.
Side Rail Installation and Clamp Placement
Attaching the Rails
Start by laying the driver-side rail along your bed rail, positioning it so the front edge sits 1-2 inches behind the bulkhead (the exact distance varies by truck model—consult the fitment guide included in your box). Slide the clamps onto the rail before you tighten anything, spacing them evenly along the length with at least one clamp near each corner.
Hand-tighten each clamp just enough to hold the rail in place, then use your 10mm wrench to snug them down in a crisscross pattern—tighten the front clamp partially, then the rear, then the middle, then go back and finish each one. Over-tightening in one spot before the others can warp the rail and cause panel misalignment later. Repeat the process on the passenger side, making sure both rails sit at identical distances from the bulkhead.
Panel Installation and Hinge Connection
With both rails secure, lift the folded panel assembly onto the rails starting at the tailgate end. The hinge knuckles on each panel should drop directly into the corresponding slots on the side rails—you’ll hear a soft click when they seat correctly. If the panels feel tight or won’t drop in, recheck your rail spacing and make sure no clamps are pinching the hinge channel.
Once the first panel is seated, work your way toward the cab, connecting each hinge in sequence. The panels should swing freely without binding—if you feel resistance, stop and inspect the hinge alignment rather than forcing it. After all four panels are connected, open and close the cover twice to verify smooth operation before moving on to the tailgate seal.
More BAKFlip Hard Folding Tonneau Covers
What people are saying
Common BAKFlip MX4 Installation Questions
Most first-time installers complete the MX4 setup in 60-90 minutes with a helper. The clamp-on rail system requires no drilling, so the bulk of your time goes to rail alignment and hinge connection. If you're working solo, budget an extra 30 minutes for positioning the panel assembly onto the rails.
Having a second person hold the rails in place while you tighten clamps speeds up the process significantly. Clean your bed rails thoroughly before you start—removing old wax or bedliner overspray prevents clamp slippage and saves you from having to redo steps.
No special tools required—you'll need a 10mm socket or wrench, a flathead screwdriver, and a spray bottle with soapy water for bed prep. Some installers also use a tape measure to verify rail positioning, though the fitment guide included with your cover provides exact measurements for your truck model.
Avoid power tools for clamp tightening. Hand-tightening with a wrench gives you better control and prevents over-torquing the clamps, which can warp the rails and cause panel misalignment.
You can install the MX4 solo, but a helper makes rail alignment and panel positioning much easier. The side rails are lightweight and manageable alone, but the folded panel assembly weighs around 60 pounds and sits awkwardly—having someone support one end while you connect the hinges prevents accidental drops.
If you're installing solo, lay a moving blanket across your tailgate to protect the panels while you work. Connect the hinges one panel at a time, working from the tailgate toward the cab.
Stiff or binding panels almost always trace back to rail alignment issues. Loosen all the clamps on both rails, reposition them so they run perfectly parallel, and retighten in a crisscross pattern. Even a small offset between the driver and passenger rails will prevent smooth folding.
Check that no clamps are pinching the hinge channel along the rail. The hinge knuckles need clearance to rotate freely—if a clamp sits too close to a hinge connection point, back it off slightly and retest the fold.
Hand-tighten each clamp until it grips the bed rail firmly, then give it one additional quarter-turn with your wrench. You want the rail secure but not crushed—over-tightening can warp the aluminum rail and cause panel gaps. Tighten clamps in a crisscross pattern rather than tightening one side completely before moving to the other.
After your first week of use, recheck clamp tension. The clamps may settle slightly as the cover flexes during normal operation, and a quick retightening ensures long-term stability.
Yes, the MX4 installs over spray-in bedliners as long as the liner doesn't cover the top of your bed rails. The clamps grip the factory bed rail, so spray-in liners that wrap up and over the rail edge can interfere with clamp placement. If your liner installer left the rail tops exposed, you're good to go.
Some thick liners raise the bed floor slightly—this won't affect installation, but verify that your tailgate still closes flush after the cover is installed. The tailgate seal compresses to accommodate minor height variations.
Absolutely—the clamp system makes removal just as easy as installation. Loosen all the clamps, disconnect the panel assembly from the hinge slots, and lift the rails off. The entire process takes about 15 minutes, and you can reinstall the cover later without any new parts.
Store the rails and panels indoors if you plan to leave the cover off for extended periods. Leaving them in the bed can expose the seals to unnecessary UV damage.
